• Wheels: 16" x 7" Painted Gray Steel
• Tires: LT245/75R16E BSW A/S -inc: Hankook DynaPro RH03
• Black Front Bumper w/Black Rub Strip/Fascia Accent
• Black Side Windows Trim and Black Front Windshield Trim
• Black Door Handles
• Light Tinted Glass
• Variable Intermittent Wipers
• Front Windshield -inc: Sun Visor Strip
• Fully Galvanized Steel Panels
• Black Grille
• Auto On/Off Reflector Halogen Daytime Running Lights Preference Setting Headlamps

• Radio: AM/FM Stereo w/Clock Display & 2 Speakers -inc: Bluetooth® capability and USB input
• Radio w/Clock
• 2 Speakers
• Fixed Antenna
• Wireless Phone Connectivity

• Dual High Back Buckets
• 4-Way Driver Seat -inc: Manual Recline and Fore/Aft Movement
• 4-Way Passenger Seat -inc: Manual Recline and Fore/Aft Movement
• Manual Tilt/Telescoping Steering Column
• Fleet Telematics Modem Selective Service Internet Access
• Front Cupholder
• Manual Air Conditioning
• Glove Box
• Front Vinyl Headliner
• Urethane Gear Shifter Material
• Vinyl Bucket Seats
• Regular Dome Lighting
• Front Only Vinyl/Rubber Floor Covering
• Fleet Telematics Modem Tracker System
• Driver And Passenger Door Bins
• Manual 1st Row Windows
• Analog Appearance
• Fixed Front Head Restraints
• Driver And Front Passenger Armrests
• 2 12V DC Power Outlets

• Electronic Stability Control (ESC) Electronic Stability Control (ESC)
• ABS And Driveline Traction Control
• Side Impact Beams
• Low Tire Pressure Warning
• Dual Stage Driver And Passenger Front Airbags
• Outboard Front Lap And Shoulder Safety Belts -inc: Height Adjusters and Pretensioners

ENGINE: 7.3L V8 PREMIUM-RATED

• (STD)

• Electrical
• Cold Cranking Amps @ 0° F (Primary): 750
• Cold Cranking Amps @ 0° F (2nd): 750
• Maximum Alternator Capacity (amps): 210
• Weight Information
• Base Curb Weight (lbs): 4907
• Gross Axle Wt Rating - Front (lbs): 4200
• Gross Axle Wt Rating - Rear (lbs): 6084
• Curb Weight - Front (lbs): 2940
• Curb Weight - Rear (lbs): 1967
• Gross Vehicle Weight Rating Cap (lbs): 10050
• Gross Combined Wt Rating (lbs): 18500
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 5000
• Dead Weight Hitch - Max Tongue Wt. (lbs): 500
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 8450
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 845
• Maximum Trailering Capacity (lbs): 8450
• Suspension
• Suspension Type - Front: Other
• Suspension Type - Rear: Leaf
• Spring Capacity - Front (lbs): 4200
• Spring Capacity - Rear (lbs): 6084
• Axle Type - Front: Independent
• Axle Type - Rear: Rigid Axle
• Axle Capacity - Front (lbs): 5000
• Axle Capacity - Rear (lbs): 7800
• Axle Ratio (:1) - Front: 4.10
• Axle Ratio (:1) - Rear: 4.10
• Brakes
• Brake Type: 4-Wheel Disc
• Brake ABS System: 4-Wheel
• Brake ABS System (Second Line): 4-Wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 13.6
• Rear Brake Rotor Diam x Thickness (in): 13.6
• Tires
• Front Tire Order Code: T38
• Rear Tire Order Code: T38
• Front Tire Size: LT245/75SR16
• Rear Tire Size: LT245/75SR16
• Front Tire Capacity (lbs): 4600
• Rear Tire Capacity (lbs): 6084
• Revolutions/Mile @ 45 mph - Front: 677
• Revolutions/Mile @ 45 mph - Rear: 677
• Wheels
• Front Wheel Size (in): 16 X 7
• Rear Wheel Size (in): 16 X 7
• Front Wheel Material: Steel
• Rear Wheel Material: Steel
• Steering
• Steering Type: Re-Circulating Ball
• Turning Diameter - Curb to Curb (ft): 48.6
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 40
• Exterior Dimensions
• Wheelbase (in): 138
• Length, Overall (in): 241.1
• Width, Max w/o mirrors (in): 79.4
• Height, Overall (in): 80.4
• Overhang, Rear w/o bumper (in): 68.5
• Cab to Axle (in): 80
• Cab to End of Frame (in): 148.5
• Ground to Top of Load Floor (in): 25.9
• Interior Dimensions
• Passenger Capacity: 2
• Front Head Room (in): 42
• Front Leg Room (in): 42.1
• Front Shoulder Room (in): 68.1
• Front Hip Room (in): 65.6
• Summary

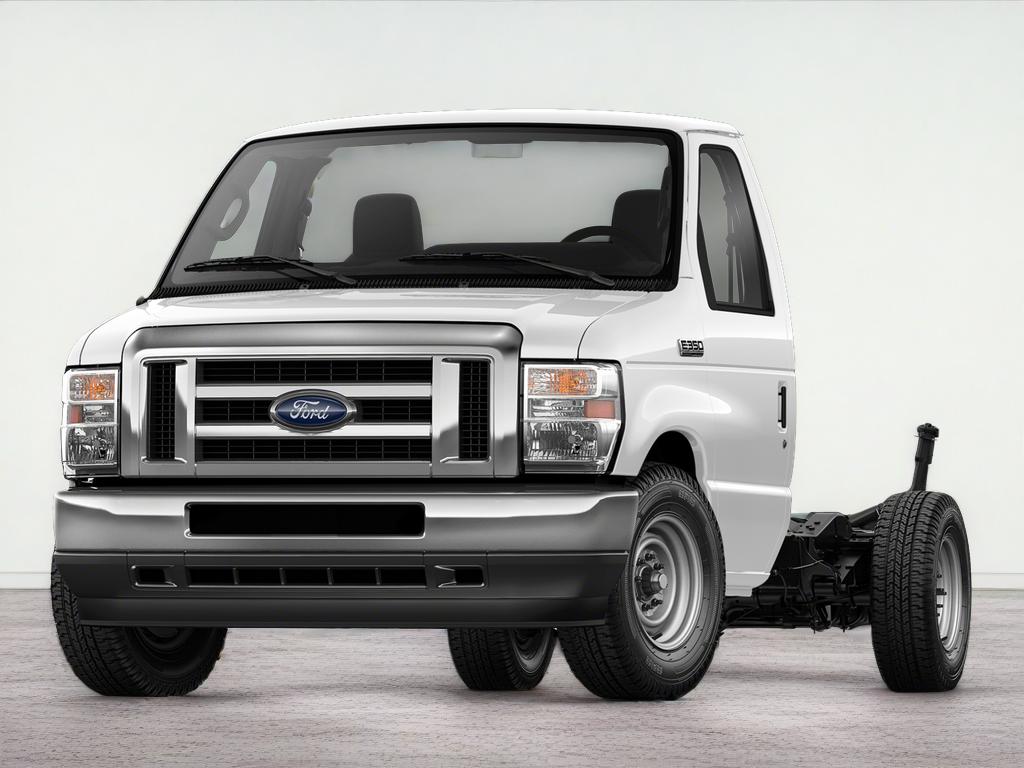

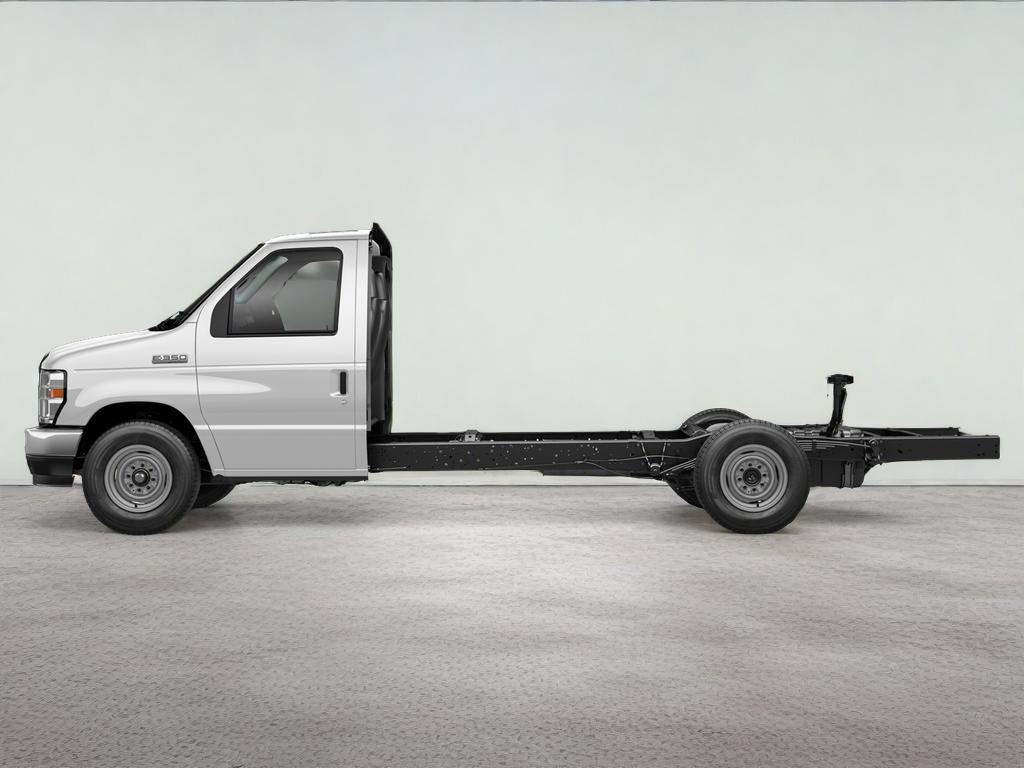

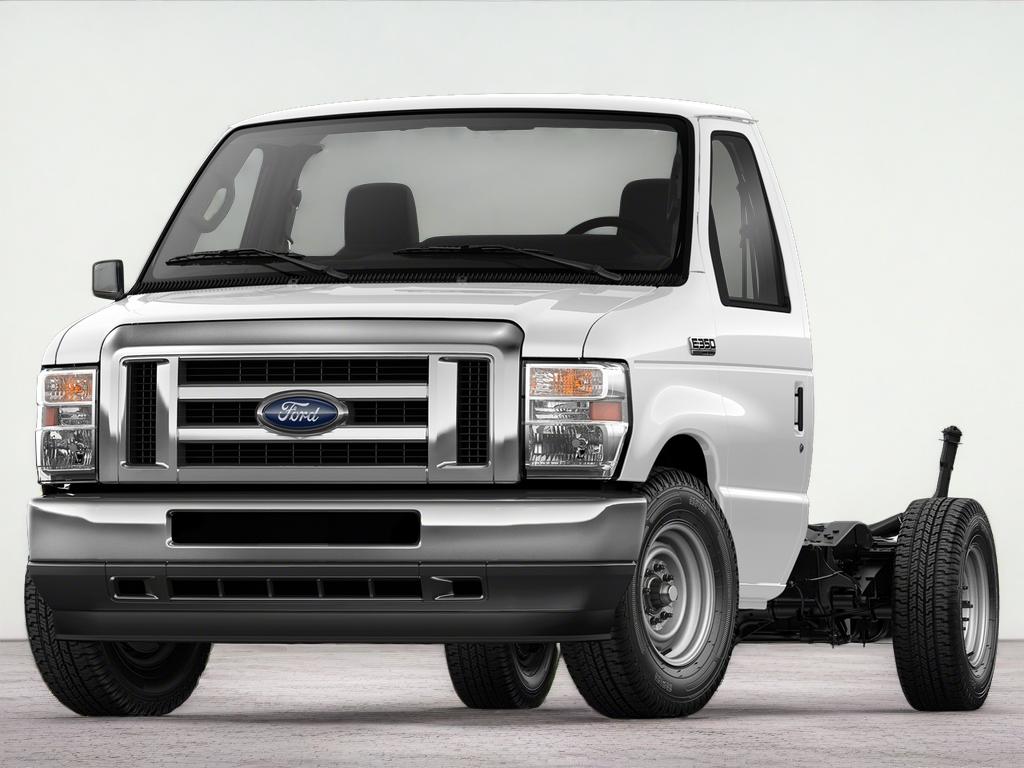

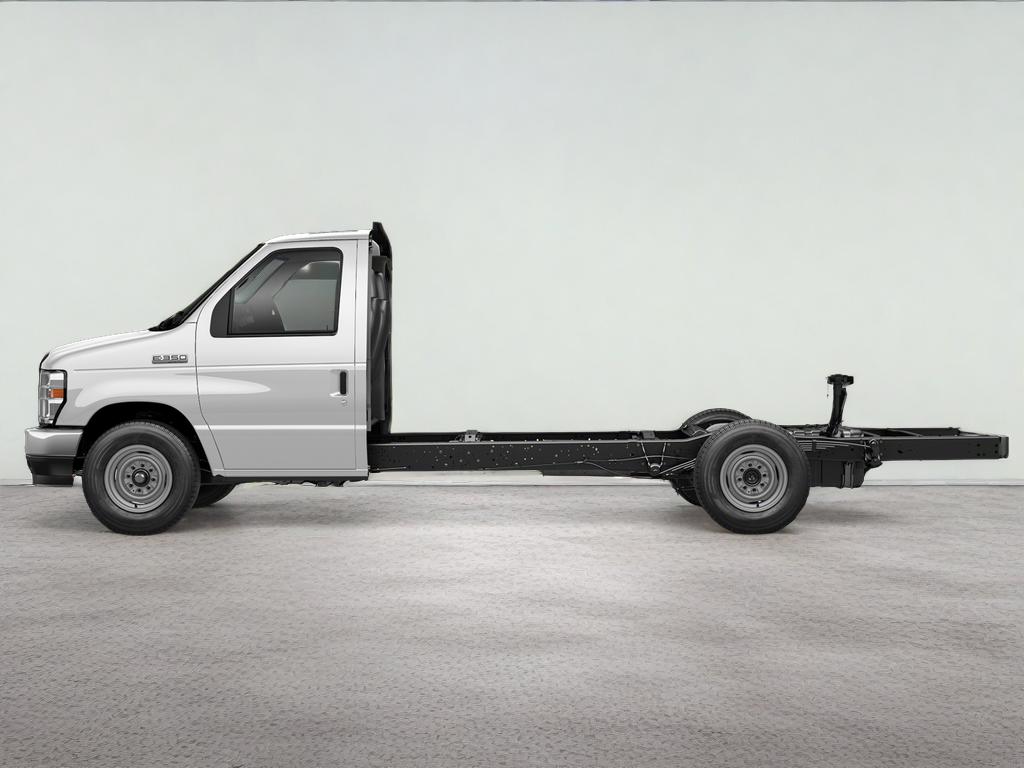

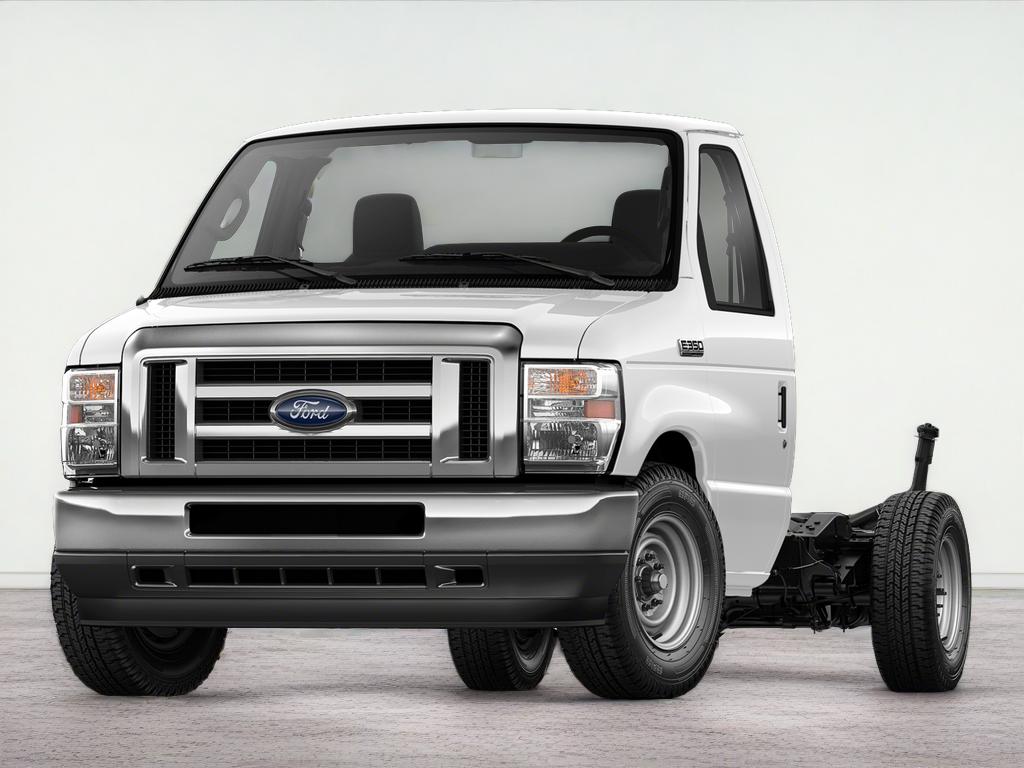

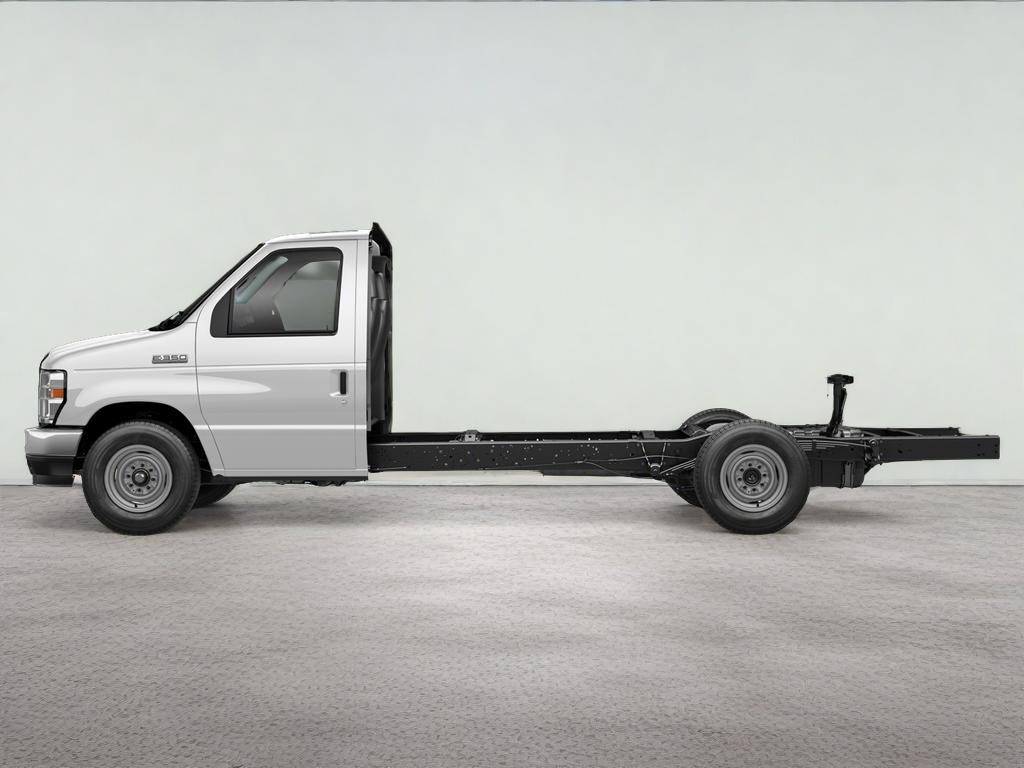

• Vehicle Name: Ford E-Series Cutaway
• Body Style: Chassis
• Body Code: H
