• Wheels, 15" (38.1 cm) steel
• Body, standard
• Tire, spare, full-size with steel wheel
• Tires, 185/60R15C, 95/92T TL
• Paint, solid
• Luggage rack, provisions only
• Bumpers, front and rear, Black
• Grille, Dark Silver with Black accents
• Headlamps, halogen, single
• Mirrors, outside, Black, manual-folding, convex spotter (wide angle)
• Glass, Solar-Ray light-tinted, windshield and front doors
• Wipers, front intermittent wet-arm with pulse washers
• License plate kit, front
• Door handles, Black
• Doors, sliding driver and passenger
• Daytime Running Lamps

• Audio system, AM/FM stereo with CD player, seek-and-scan, digital clock, TheftLock, random select, auxiliary audio jacks and 2 front door speakers
• Audio system feature, 2-speakers in front doors, 6.5"
• Antenna, fixed

• Seats, front bucket with Custom Cloth trim includes driver armrest, fold-flat passenger seat with work desk, manual lumbar adjustment and under seat tray
• Seat, front passenger fold-down includes work desk
• Seat adjuster, driver manual, slide, recline and height
• Seat adjuster, front passenger, manual, slide and recline
• Console, center, multifunctional mobile office
• Floor covering, front vinyl
• Floor covering, rear, vinyl
• Steering wheel, steel sleeve column with theft-deterrent locking feature
• Windows, power with driver Express-Up/Down
• Air conditioning, single-zone manual
• Glovebox
• Cup holders 2 front, includes 16 oz. cup holder and 32 oz bottle holder
• Power outlet, auxiliary, 12-volt
• Storage, open, floor console, binder size
• Headliner, cloth, over driver and passenger
• Visors, driver and front passenger, cloth, padded
• Lighting, interior, map and cargo area
• Storage, open pocket rear of passenger seat
• Cargo area, reinforced mounting points (weld nuts)
• Cargo hooks, 6 "D" rings in rear

• Traction control and vehicle stability enhancement system
• Air bags, frontal, driver and right-front passenger with Passenger Sensing System "Always use safety belts and the correct child restraints. Children are safer when properly secured in a rear seat in the appropriate child restraint. See the Owner's Manual for more information."
• Air bags, head/side-curtain "Always use safety belts and the correct child restraints. Children are safer when properly secured in a rear seat in the appropriate child restraint. See the Owner's Manual for more information."
• Safety belts, 3-point, driver and front passenger
• Tire Pressure Monitoring System (does not apply to spare tires)
• Theft-deterrent system
• Warning tones, headlamp on and key-in-ignition
• Horn, single-note

1LS PREFERRED EQUIPMENT GROUP

• includes Standard Equipment

SEATS, FRONT BUCKET WITH CUSTOM CLOTH TRIM

• includes driver armrest
• fold-flat passenger seat with work desk
• manual lumbar adjustment and under seat tray (STD)

ENGINE, 2.0L DOHC I4

• (131 hp [97.7 kW]@ 5200 rpm
• 139-lb-ft of torque [187.6 N-m]@ 4900) (STD)

TRANSMISSION, XTRONIC CVT (CONTINUOUSLY VARIABLE TRANSMISSION)

• (STD)

AUDIO SYSTEM, AM/FM STEREO

• with CD player
• seek-and-scan
• digital clock
• TheftLock
• random select
• auxiliary audio jacks and 2 front door speakers (STD)

APPEARANCE PACKAGE

• includes (V35) body-color front and rear bumpers
• (D75) body-color door handles
• (PB1) wheel covers and (V22) chrome grille with Black accents.

GLASS, DEEP TINT, REAR DOORS

• includes (C49) rear defogger and (D31) inside rearview day/night mirror

BODY, STANDARD

• (STD)

• MEDIUM PEWTER

• CUSTOM CLOTH SEAT TRIM

  DEFOGGER

• REAR-WINDOW ELECTRIC

  MIRROR

• INSIDE REARVIEW MANUAL DAY/NIGHT

  DOOR HANDLES

• BODY-COLOR

  MIRRORS

• OUTSIDE
• BODY-COLOR
• MANUAL-FOLDING

  EMISSIONS

• FEDERAL REQUIREMENTS

  DESIGNER WHITE

  WHEEL COVERS

• 15" (38.1 CM)

  BLUETOOTH FOR PHONE

• PERSONAL CELL PHONE CONNECTIVITY TO VEHICLE AUDIO SYSTEM

  GRILLE

• CHROME WITH BLACK ACCENTS

  BUMPERS

• FRONT AND REAR
• BODY-COLOR

• Vehicle
• Rear Door Type: Swing-Out
• Mileage
• Fuel Economy Est-Combined (MPG): 25
• EPA Fuel Economy Est - City (MPG): 24
• EPA Fuel Economy Est - Hwy (MPG): 26
• Electrical
• Cold Cranking Amps @ 0° F (Primary): - TBD -
• Maximum Alternator Capacity (amps): 150
• Maximum Alternator Watts: - TBD -
• Cooling System
• Total Cooling System Capacity (qts): 8.0
• Weight Information
• Gross Axle Wt Rating - Front (lbs): - TBD -
• Gross Axle Wt Rating - Rear (lbs): - TBD -
• Curb Weight - Front (lbs): - TBD -
• Curb Weight - Rear (lbs): - TBD -
• Gross Vehicle Weight Rating Cap (lbs): 4751
• Gross Combined Wt Rating (lbs): - TBD -
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): - TBD -
• Dead Weight Hitch - Max Tongue Wt. (lbs): - TBD -
• Wt Distributing Hitch - Max Trailer Wt. (lbs): - TBD -
• Wt Distributing Hitch - Max Tongue Wt. (lbs): - TBD -
• Fifth Wheel Hitch - Max Trailer Wt. (lbs): - TBD -
• Fifth Wheel Hitch - Max Tongue Wt. (lbs): - TBD -
• Suspension
• Suspension Type - Front: Independent
• Suspension Type - Rear: Multi-Stage
• Spring Capacity - Front (lbs): - TBD -
• Spring Capacity - Rear (lbs): - TBD -
• Axle Type - Front: - TBD -
• Axle Type - Rear: - TBD -
• Axle Capacity - Front (lbs): - TBD -
• Axle Capacity - Rear (lbs): - TBD -
• Axle Ratio (:1) - Front: - TBD -
• Shock Absorber Diameter - Front (mm): - TBD -
• Shock Absorber Diameter - Rear (mm): - TBD -
• Stabilizer Bar Diameter - Front (in): - TBD -
• Brakes
• Brake Type: Pwr
• Brake ABS System: 4-Wheel
• Disc - Front (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 11.14 x 1.10
• Drum - Rear (Yes or ): Yes
• Rear Drum Diam x Width (in): 9.0 x - TBD -
• Tires
• Front Tire Order Code: QTY
• Rear Tire Order Code: QTY
• Spare Tire Order Code: RBI
• Front Tire Size: 185/60R15C, 95/92T TL
• Rear Tire Size: 185/60R15C, 95/92T TL
• Spare Tire Size: Full-Size
• Front Tire Capacity (lbs): - TBD -
• Rear Tire Capacity (lbs): - TBD -
• Spare Tire Capacity (lbs): - TBD -
• Revolutions/Mile @ 45 mph - Front: - TBD -
• Revolutions/Mile @ 45 mph - Rear: - TBD -
• Revolutions/Mile @ 45 mph - Spare: - TBD -
• Wheels
• Front Wheel Size (in): 15 x 5.5
• Rear Wheel Size (in): 15 x 5.5
• Spare Wheel Size (in): 15 x - TBD -
• Front Wheel Material: Steel
• Rear Wheel Material: Steel
• Spare Wheel Material: Steel
• Steering
• Steering Type: Pwr
• Steering Ratio (:1), On Center: 18.3
• Steering Ratio (:1), At Lock: - TBD -
• Turning Diameter - Curb to Curb (ft): 36.7
• Turning Diameter - Wall to Wall (ft): N/A
• Frame
• Frame Type: Unibody
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 14.5
• Fuel Tank Location: - TBD -
• Doors
• Side Door Type: Dual Sliding
• Exterior Dimensions
• Wheelbase (in): 115.20
• Length, Overall w/rear bumper (in): 186.30
• Width, Max w/o mirrors (in): 68.10
• Height, Overall (in): 73.70
• Overhang, Front (in): - TBD -
• Overhang, Rear w/bumper (in): - TBD -
• Ground to Top of Load Floor (in): 21.1
• Ground Clearance, Front (in): 6.5
• Ground Clearance, Rear (in): 6.1
• Rear Door Opening Height (in): 48.80
• Rear Door Opening Width (in): - TBD -
• Side Door Opening Height (in): 45.80
• Side Door Opening Width (in): 27.00
• Step Up Height - Front (in): 14.80
• Step Up Height - Side (in): 19.20
• Cargo Area Dimensions
• Cargo Area Length @ Floor to Console (in): 82.80
• Cargo Area Length @ Floor to Seat 1 (in): - TBD -
• Cargo Area Width @ Beltline (in): - TBD -
• Cargo Box Width @ Wheelhousings (in): 48.00
• Cargo Box (Area) Height (in): 53.00
• Cargo Volume (ft³): 122.7
• Interior Dimensions
• Passenger Capacity: 2
• Front Head Room (in): 41.70
• Front Leg Room (in): 42.60
• Front Shoulder Room (in): 54.10
• Front Hip Room (in): 51.30
• Summary

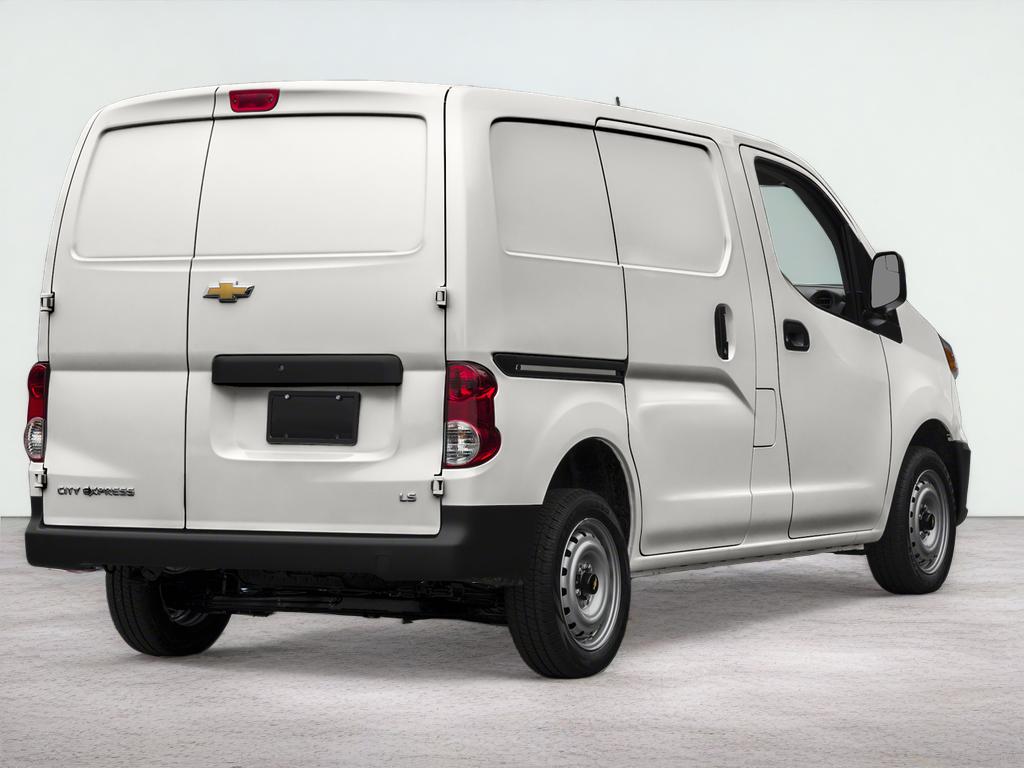

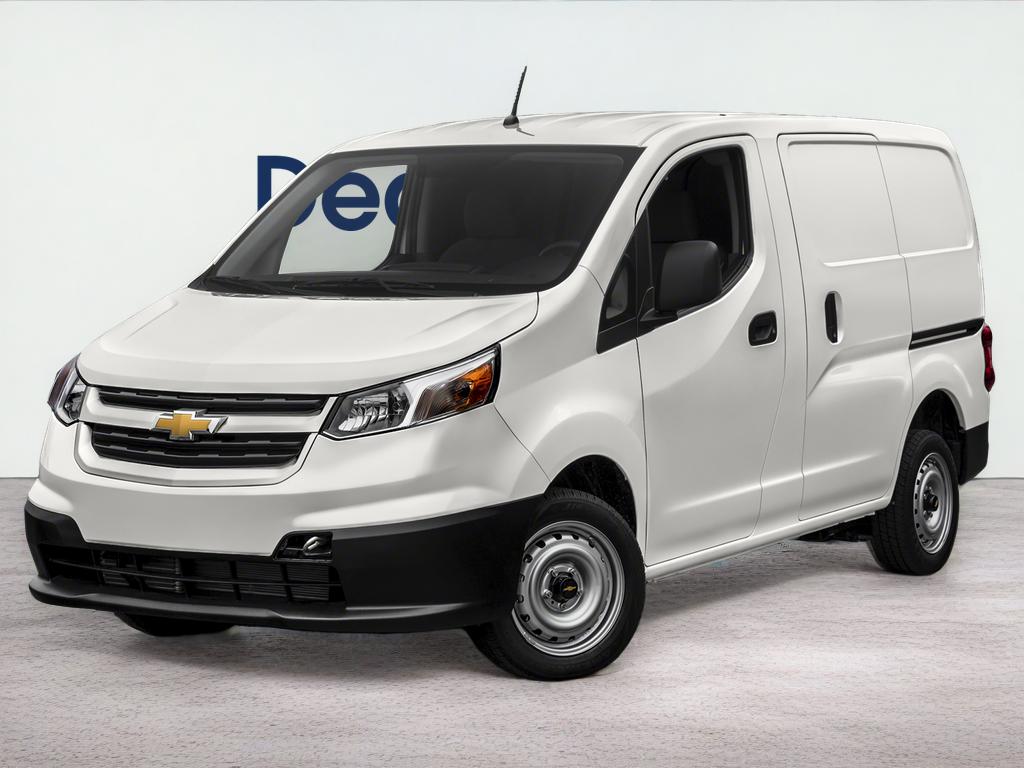

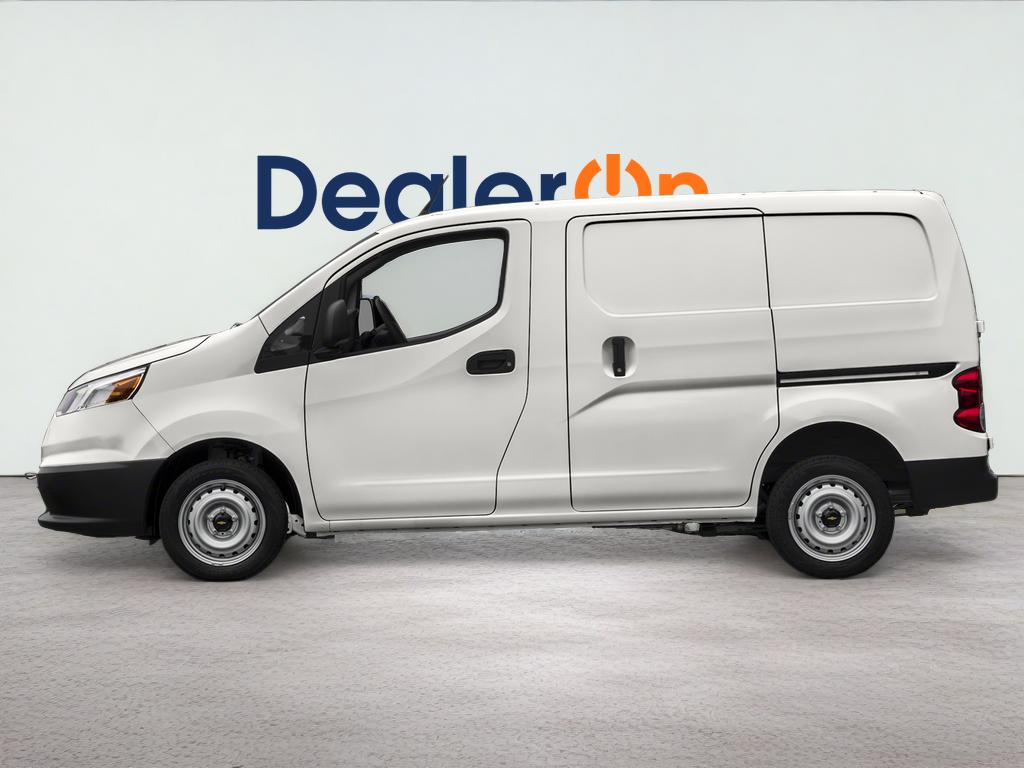

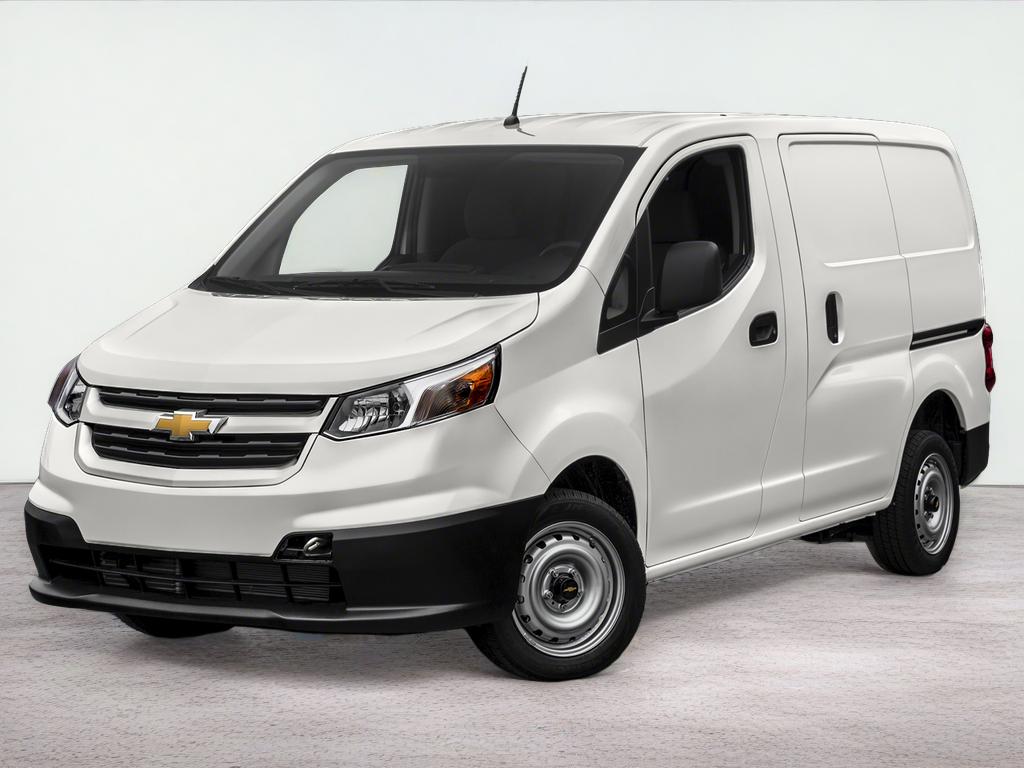

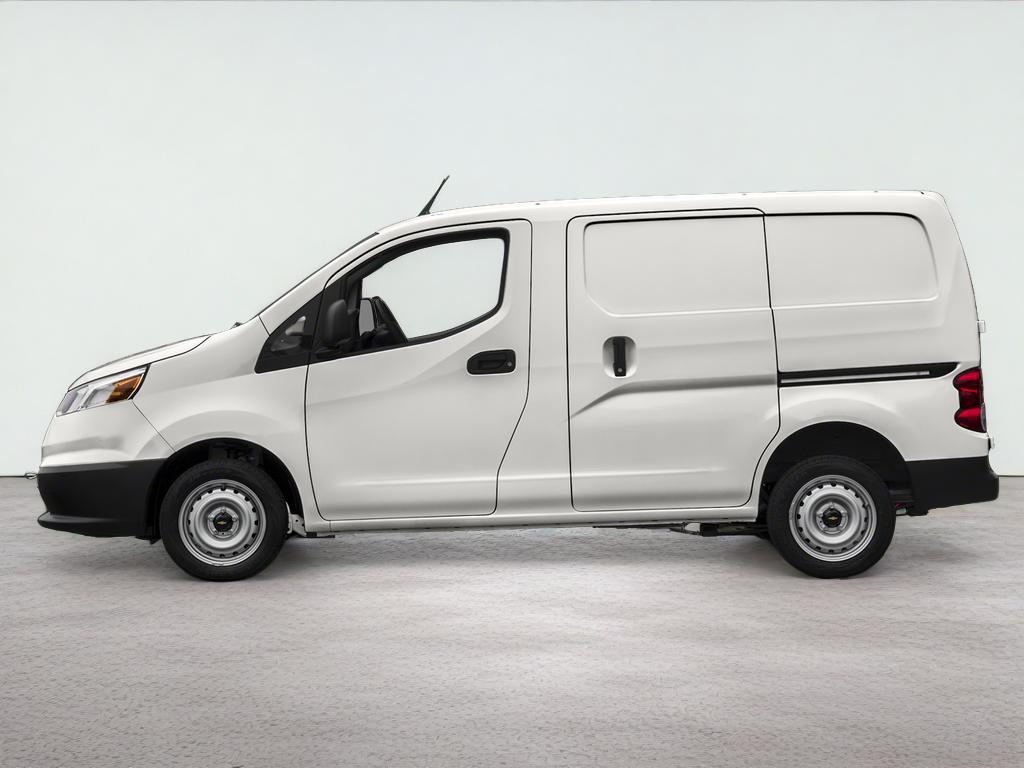

• Vehicle Name: Chevrolet City Express Cargo Van
• Body Style: Cargo Van
• Body Code: ZW9
• Emissions
• EPA Greenhouse Gas Score: 6
• Tons/yr of CO2 Emissions @ 15K mi/year: 7.0
